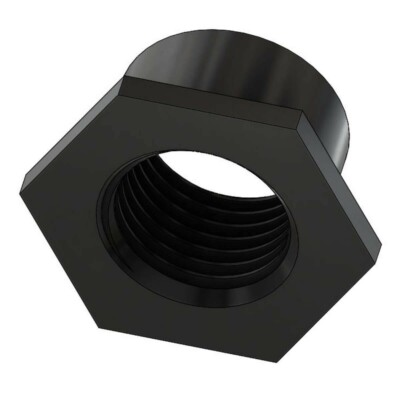

S27 Frame saver Female Threaded 7mm M10 x 1 tap for derailleur
This solution helps with ruined tread for cases of unreachable derailleur hander or hangerless frame.
measurements:
Outer Diameter – 12 mm
Length:5mm
Hexagon 16mm
the thread is M10 X 1, a standard derailleur tap
*There are 2 possible lengths when it comes to this part:
for 8mm standard frame-7mm
for 6mm frame-5mm
How do you install it?
1. drill a 12mm (0.472 inches) hole where the tap used to be.
2. insert this part with the hexagon facing the other way from the derailleur.
3. tighten in the derailleur's bolt, and you're done!
This bicycle part manufactured by PILO LTD, using CNC technology.
Our production facility is ISO 9001 2015 certified.
Made of 6061 T6511 ASTM B221 billet aluminum
Coating: hard black Anodized
